IR to RS232 Codes Output Table for RCV-5000 Infrared Receiver

Lumagen Vision HDP Video Scaler
(Repeating codes version)

Celadon Inc.
RCV-5000  IR to RS-232 Output Table
Device: Lumagen Vision HDP Video Scaler
Infrared Remote Control: Celadon, SC-33A
Infrared Code Format: NEC - Device ID: 6E91
Infrared Receiver: Celadon RCV-5000 Infrared to RS-232 Receiver
RCV-5000 Data File: lumagen2_r.hex
Data: 9600 baud, 8, N, 1  (ASCII Output)
Standard Transmit and Receive Pinout
Lumagen HDP Command
SC-33A Key Number
RS-232 Output
MENU
1
M
ON
2
%
STBY
3
$
EXIT
4
x
Freeze-frame.
5
z
NLS 4:3
6
N
Select MEMA
7
a
Up arrow
8
^
Select MEMB
9
b
Left arrow
10
<
OK
11
<cr>
Right arrow
12
>
Select MEMC
13
c
Down arrow
14
v
Select MEMD
15
d
Enter the digit 1
16
1
Enter the digit 2
17
2
Enter the digit 3
18
3
Enter the digit 4
19
4
Enter the digit 5
20
5
Enter the digit 6
21
6
Enter the digit 7
22
7
Enter the digit 8
23
8
Enter the digit 9
24
9
Set Vertical Rate to 59.94
25
~5994
Enter the digit 0
26
0
Set Vertical Rate to 50
27
~5000
Set Vertical Rate to 47.95
28
~4795
Set Vertical rate to 24
29
~2400
Set Vertical Rate to 23.98
30
~2398
Input is 4:3 format.
31
n
Input is 4:3 letter-box format.
32
l
Enhanced for 16:9.
33
w


Celadon, Inc.
500 Tamal Plaza, Suite 520
Corte Madera, CA 94925
Sales: (707) 648-1098
Main Tel: (415) 472-1177
Main Fax: (415) 472-1179
sales@irremotes.com

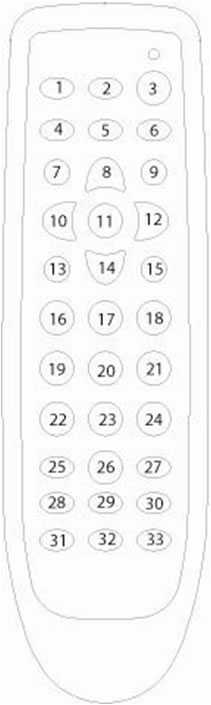

SC-33A Key Number Drawing
